Guiding Long-Horizon Task and Motion Planning
with Vision Language Models

In Submission

VLM-TAMP is a general method for solving long-horizon manipulation planning problems,
combining the strengths and overcome the limitations of Task and Motion Planning & Vision Language Models.

VLM-TAMP

Vision-Language Models (VLM) can generate plausible high-level plans.
However, there is no guarantee that the actions predicted and grounded by VLM/LLMs
are geometrically and kinematically feasible for a particular robot embodiment.

For example, when the VLM predicted step is "Place the cabbage in the pot,"
the shortest plan for the following three robot embodiments are different:

Embodiment	Dual-Arm Rummy (Long Arms)	Dual-Arm PR2 (Shorter Arms)	Single-Arm PR2
Plans	pick(left-arm, cabbage) place(left-arm, cabbage, pot)	pick(left-arm, cabbage) push-handle(right-arm, cabbage-drawer) place(left-arm, cabbage, pot)	pick(left-arm, cabbage) place(left-arm, cabbage, counter) pick(left-arm, cabbage) place(left-arm, cabbage, pot)
Trajectories

We propose VLM-TAMP, a hierarchical planning algorithm that leverages a VLM to generate
both semantically-meaningful and horizon-reducing subgoals that guide a task and motion planner.
When a subgoal cannot be refined, the VLM is queried again for replanning.

VLM-TAMP

VLM: Query Mode: Robot: Init:

We evaluate VLM-TAMP on kitchen tasks where a robot must accomplish cooking goals
that require performing 30-50 actions in sequence and interacting with up to 21 objects.

VLM-TAMP substantially outperforms baselines that rigidly and independently execute VLM-generated action sequences,
both in terms of success rates (50 to 100% versus 0%) and average task completion percentage (72 to 100% versus 15 to 45%).

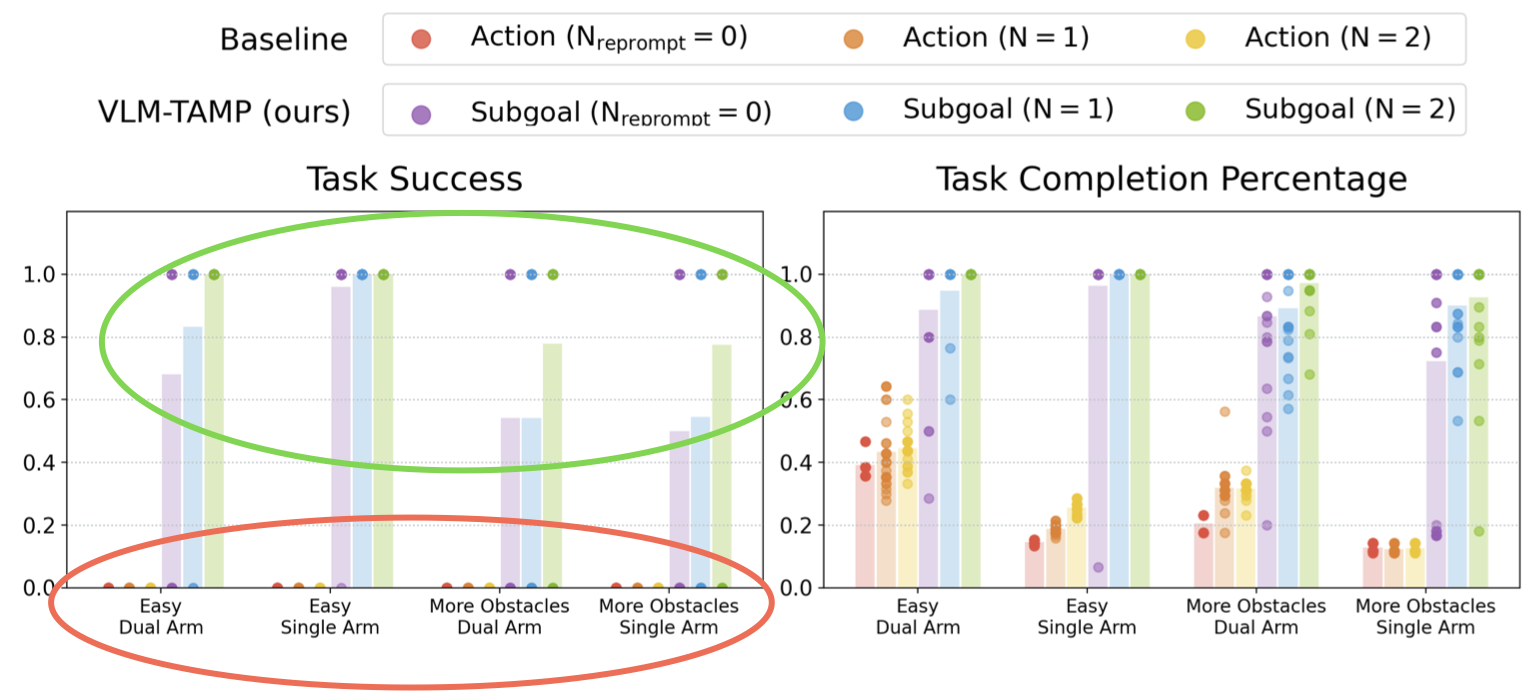

result_1

Reprompting VLM visibly benefit VLM-TAMP, increasing task success increasing by 47 to 55% on the harder problems,
while it doesn't help the baseline which predicts actions

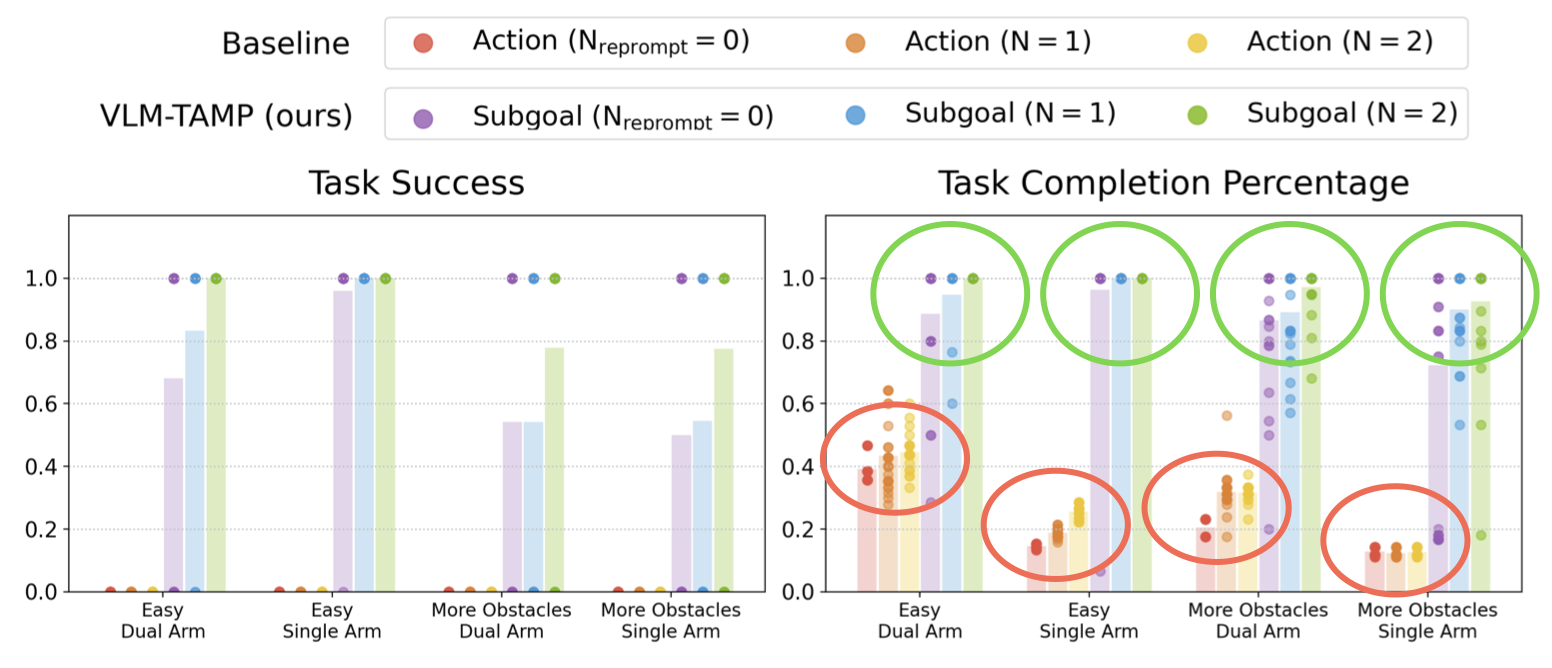

result_2
